Comfort Series Guillotine Shears with Gearbox

Comfort Series Guillotine Shears with Gearbox Comfort Series Guillotine Shears with Gearbox Comfort Series Guillotine Shears with Gearbox Comfort Series Guillotine Shears with Gearbox Comfort Series Guillotine Shears with Gearbox Comfort Series Guillotine Shears with Gearbox

Comfort Series Guillotine Shears with Gearbox

Quality production is carried out by carefully choosing the right materials in production. Timely and professional service support is accepted as a principle, in design and production; based on trust, sensitivity is taken as the basis. After the machines designed with computer aided drawing and strength analysis with our professional team have completed the construction, the stress relief process is done. It is precision machined in CNC machining centers and CNC lathes, equipped with world-renowned equipment, and offered to customers after quality control.

General Features:

  • COMFORT SERIES Guillotine Shears with Reducer are suitable for cutting sheet metal from 0.15 mm to 6 mm thickness.
  • Welded steel construction chassis
  • Multi-bladed upper and lower blades
  • Upper cutting jaw with Teflon slide on both sides for long life
  • Easy-to-maintain clutch system
  • Easy adjustable feeler setting
  • Mechanical pressure system that prevents the sheet from slipping during cutting



  1. Strong, welded and solid body providing maximum cutting precision
  2. In 2-3 mm machines, the knives are made of high alloy steel as 2-edged upper / 2-edged lower.
  3. 4 - 5 - 6 mm The blades of the machines are made of high alloy steel as 2-edge upper / 4-bladed lower.
  4. 600 mm Stroke manual back gauge
  5. 2-3 mm Miter with ruler 800 mm long on machines
  6. 4 - 5 - 6 mm Miter ruler with stopper and a 1000 mm length with T-slots on machines
  7. Mechanical pressure system that prevents the sheet from slipping during cutting
  8. Easily adjustable blade gap adjustment system
  9. Ball faceplate
  10. Ruler front support arms
  11. cutting line lighting
  12. front hand guard
  13. foot pedal
  14. Rear foot guard
  15. Emergency stop button
  16. Front Hair removal arms
  1. Motorized NC control backgauge with 750 mm stroke (UMS 1000 control unit)
  2. Motorized NC control back gauge with 1000 mm stroke (UMS 1000 control unit)
  3. Pneumatic back sheet support system

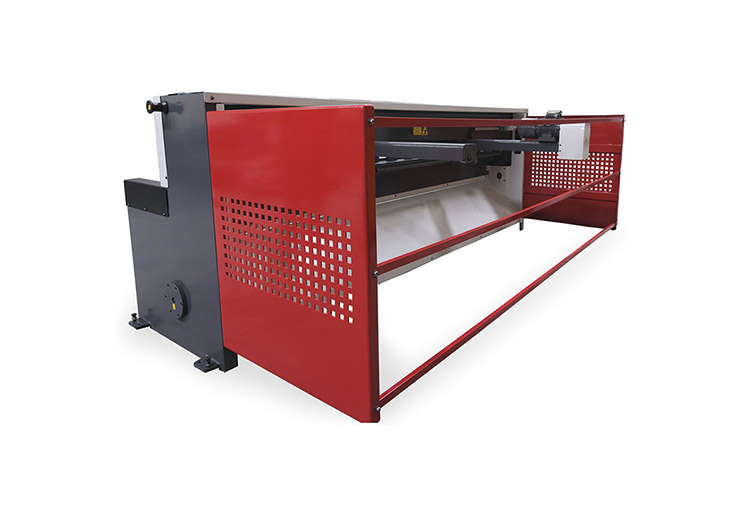

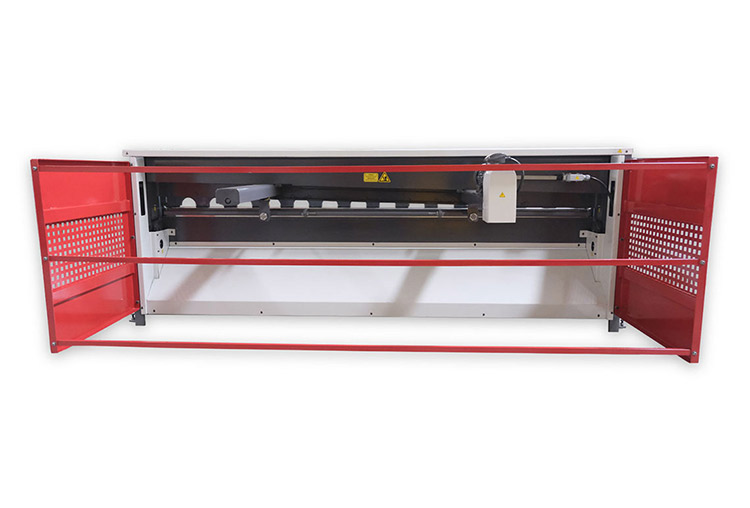

  4. Rear safety barrier system
  5. Angle miter adjustable 0-180°
  6. Cut piece counter
  7. Ruler miter 2-3 m long
  8. DELTA 7" touch NC control unit
  9. ELGO P4OT touch NC control unit
  10. Rear hair collection unit
Model Cutting Capacity Cutting Length Cutting Angle Cuts Per Minute Table Length Table Height Table Width Backing Travel Distance X Axis Machine Dimensions Motor Power Weight
Thickness A Degree
(°)		 d/dk B C D mm Length x Width x Height (FxGxH) kW Kg
mm mm mm mm mm mm
COMFORT 1002 2 1050 2,3 30 1325 800 410 600 1685 1302 1123 2.2 700
COMFORT 1302 2 1350 2,3 30 1625 800 410 600 1985 1302 1123 2.2 800
COMFORT 1502 2 1550 2.3 30 1825 800 410 600 2185 1302 1123 2.2 950
COMFORT 2002 2 2050 1,5 30 2325 800 410 600 2685 1302 1123 3 1250
COMFORT 2502 2 2550 1,5 30 2825 800 410 600 3185 1302 1123 3 1750
COMFORT 1003 3 1050 2,3 35 1355 800 520 600 1720 1575 1230 3 1100
COMFORT 1303 3 1350 2,3 35 1655 800 520 600 2020 1575 1230 3 1350
COMFORT 1503 3 1550 2,3 35 1855 800 520 600 2220 1575 1230 3 1600
COMFORT 2003 3 2050 1,5 35 2355 800 520 600 2720 1575 1230 3 1900
COMFORT 2503 3 2550 1,5 30 2855 800 520 600 3220 1575 1230 4 2200
COMFORT 3003 3 3050 1,5 30 3355 800 520 600 3720 1575 1230 4 2500
COMFORT 3503 3 3550 1,3 30 3855 800 520 600 4220 1575 1230 5,5 3500
COMFORT 4003 3 4050 1,2 30 4355 800 520 600 4720 1575 1230 5,5 4750
COMFORT 1004 4 1050 2,3 30 1355 800 530 600 1720 1630 1230 4 1800
COMFORT 1304 4 1350 2.3 30 1655 800 530 600 2020 1630 1230 4 2150
COMFORT 1504 4 1550 2,3 30 1855 800 530 600 2220 1630 1230 4 2350
COMFORT 2004 4 2050 1,5 30 2355 800 530 600 2720 1630 1230 7.5 2850
COMFORT 2504 4 2550 1,5 30 2855 800 530 600 3220 1630 1230 7.5 3350
COMFORT 3004 4 3050 1,5 30 3355 800 530 600 3720 1630 1230 7.5 3850
COMFORT 3504 4 3550 1,3 30 3855 800 530 600 4220 1630 1230 7.5 4650
COMFORT 4004 4 4050 1,2 30 4355 800 530 600 4720 1630 1230 7.5 5500
COMFORT 1005 5 1050 2,3 30 1355 800 530 600 1720 1630 1230 7.5 1900
COMFORT 1305 5 1350 2,3 30 1655 800 530 600 2020 1630 1230 7.5 2250
COMFORT 1505 5 1550 2.3 30 1855 800 530 600 2220 1630 1230 7.5 2500
COMFORT 2005 5 2050 1,5 30 2355 800 530 600 2720 1630 1230 7.5 3000
COMFORT 2505 5 2550 1,5 30 2855 800 530 600 3220 1630 1230 7.5 3500
COMFORT 3005 5 3050 1,5 30 3355 800 530 600 3720 1630 1230 7.5 4000
COMFORT 1006 6 1050 2,3 30 1355 800 530 600 1720 1630 1230 7.5 2000
COMFORT 1306 6 1350 2,3 30 1655 800 530 600 2020 1630 1230 7.5 2350
COMFORT 1506 6 1550 2,3 30 1855 800 530 600 2220 1630 1230 7.5 2600
COMFORT 2006 6 2050 1,5 30 2355 800 530 600 2720 1630 1230 7.5 3200
COMFORT 2506 6 2550 1,5 25 2855 800 530 600 3220 1630 1230 11 3750
